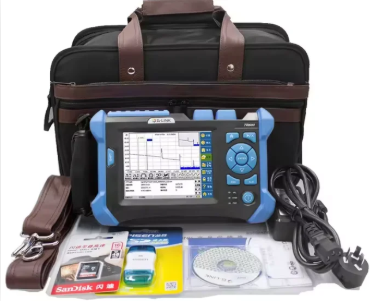

Optical time domain reflectometer OTDR K-600
Product Details
The K-600 Series OTDR is a high-performance, portable instrument engineered to meet the comprehensive measurement needs of FTTx, Metropolitan Area Networks (MAN), and Backbone Networks. With its compact, lightweight, yet rugged design, the K-600 is an indispensable tool for optical cable construction, maintenance, and emergency monitoring.
Advanced Analysis Capabilities: Unlike basic testers, the K-600 offers sophisticated analysis modes. The Trace Fixing Function enables simultaneous comparison of a live trace with a saved reference trace, which is crucial for multi-core fiber installation and aging checks. The Multi-Wavelength Analysis mode automatically switches wavelengths during setup to analyze attenuation across the spectrum efficiently.
Efficiency in the Field: Designed for efficiency, the K-600 features Connection Status Detection to ensure proper setup before testing. Users can flexibly switch between real-time and average measurement modes. All data can be processed via the included K-600 OTDR Traces Manager PC Software, facilitating batch modification, printing, and professional report generation.
Key Features
- 5.6-inch Touchscreen: Large-area touchscreen combined with shortcut keys for flexible operation in any environment.
- ≥8 Hours Battery Life: High-capacity polymer lithium battery designed for prolonged outdoor construction.
- High Dynamic Range (42dB): Engineered for FTTx, Metro, and Backbone networks with Multi-wavelength options (850nm to 1625nm).
- Precision Testing: Short Event Dead Zone (≤1.8m) and high linearity for accurate fault location.
Smart Auto-Measurement: One-click automatic parameter setup, trace analysis, and data saving.
Robust Design: Dustproof and shockproof casing, built for harsh field conditions.
- Live Signal Protection: Optical Communication Detection protects the instrument from active signal damage.
- Massive Storage: Supports SD card (8GB included) for storing over 10,000 traces.
Professional Reporting Made Easy
Turn field data into professional acceptance reports in minutes. The K-600 includes the powerful Trace Manager PC Software.
Batch Processing: Edit and analyze hundreds of traces at once.
One-Click Printing: Generate professional test reports in Bellcore (.sor) format.
Multi-Trace Comparison: Easily compare aging fibers against reference data.
Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 850/1300, 1310/1550, 1625, 1310/1490/1550 nm |
| Dynamic Range | 20/18 to 42/40 dB (Depends on config) |
| Pulse Width | 5ns to 20480ns |
| Event Dead Zone | ≤ 1.8 m |
| Attenuation Dead Zone | ≤ 10 m |
| Display | 5.6-inch Touchscreen |
| Distance Range | 0.3 km to 180 km |
| Sampling Points | 32K |
| Linearity | ±0.05 dB/dB |
| Loss Resolution | 0.001 dB |
| Storage | SD Card (8GB), >10,000 traces |
| Battery | Lithium; Working time ≥ 8 hours |
| Dimensions / Weight | 150 x 235 x 66mm / 1.5kg |
| Interfaces | FC/UPC (PC/APC Optional), USB, SD Card |
| VFL Module | 650nm, 2-3dBm, 3km Distance |
FTTx Network Deployment: Installation and troubleshooting of distribution and drop cables.
Backbone & Metro Construction: Long-distance fiber verification and acceptance testing.
Emergency Restoration: Rapid fault locating for minimizing network downtime.
R&D and Manufacturing: Precision measurement for fiber cable production.
| Code | Description | Options |
|---|---|---|
| Interface | Optical Interface | S: Single-modeM: Multi-mode |
| Wavelength | Wavelength Config | 10: 850/1300nm (MM)20: 1310/1550nm (SM)24: 1310/1550/1625nm (Live)30: 1310/1490/1550nm (PON) |
| Dynamic Range | Performance Level | A: 32/30dB (Standard)B: 36/34dB (Medium)C: 38/36dB (High)D: 42/40dB (Ultra-High) |
