Optical Fiber Identifier
Optical Fiber Identifier K-350
- All-metal fuselage, CNC highly processed

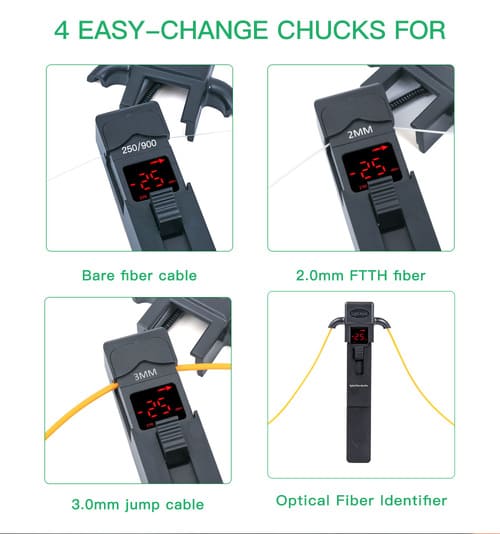

- 4 Kinds of chucks. Easy to operate and change; Suitable for 0.25/ 0.9/ 2.0/ 3.0mm fiber
- Recognizable 2kHz/ 1kHz/ 270Hz signal type with beeping sound
- LED display
- Identify dominant signal direction
- Universal for SM & MM fiber
- Built-in LED light, convenient for line checking in the dark
- Configure OPM function, 2.5mm universal interface
Product Details
The K-350 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without damaging the fiber. When the traffic is present,the intermittently audible tone is activated.

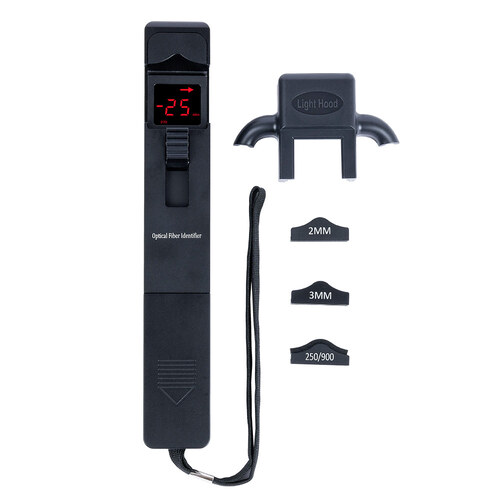

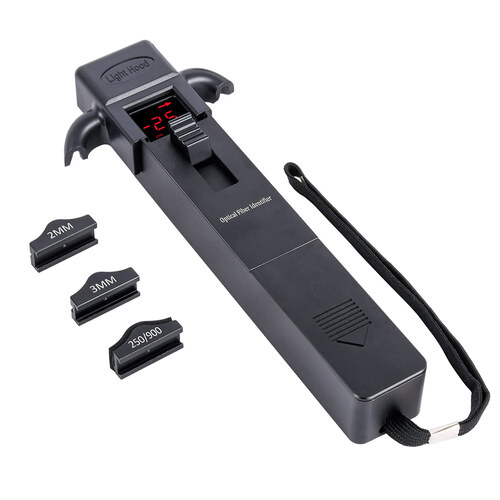

The K-350 also recognizes modulation signals — 270Hz, 1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated.There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The JW3306A optical fiber identifier is powered by a 9V alkaline battery .

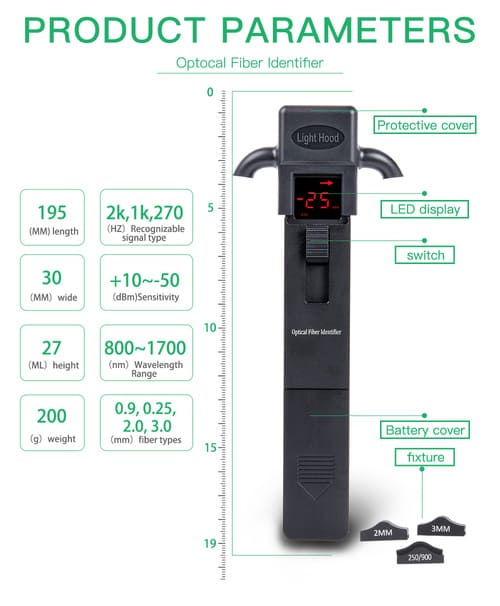

Type | K-350 | |
Identified Wavelength Range | 800-1700nm | |
Identified Signal Type | CW, 270Hz±5%，1kHz±5%，2kHz±5% | |
Detector Type | Ø1mm InGaAs 2pcs | |
Adapter Type | Ø0.25 (Applicable for Bare Fiber)，Ø0.9 (Applicable for Ø0.9 Cable) Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ) | |
Signal Direction | Left & Right LED | |
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) | -46~10(1310nm) | |
-50~10(1550nm) | ||
Signal Power Test Range (dBm, CW/0.9mm bare fiber) | -50~+10 | |
Signal Frequency Display (Hz) | 270, 1k, 2k | |
Frequency Test Range (dBm, Average Value) | Ø0.9, Ø2.0, Ø3.0 | -30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
Ø0.25 | -25~0 (1KHz,2KHz) | |
-20~0 (2KHz) | ||
Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
2.5 (1550nm) | ||
Alkaline Battry(V) | 9 | |
Operating Temperature(℃) | -10－+60 | |
Storage Temperature(℃) | -25－+70 | |
Dimension (mm) | 196X30.5X27 | |
Net Weight (g) | 200 | |
