Multi-functional OTDR

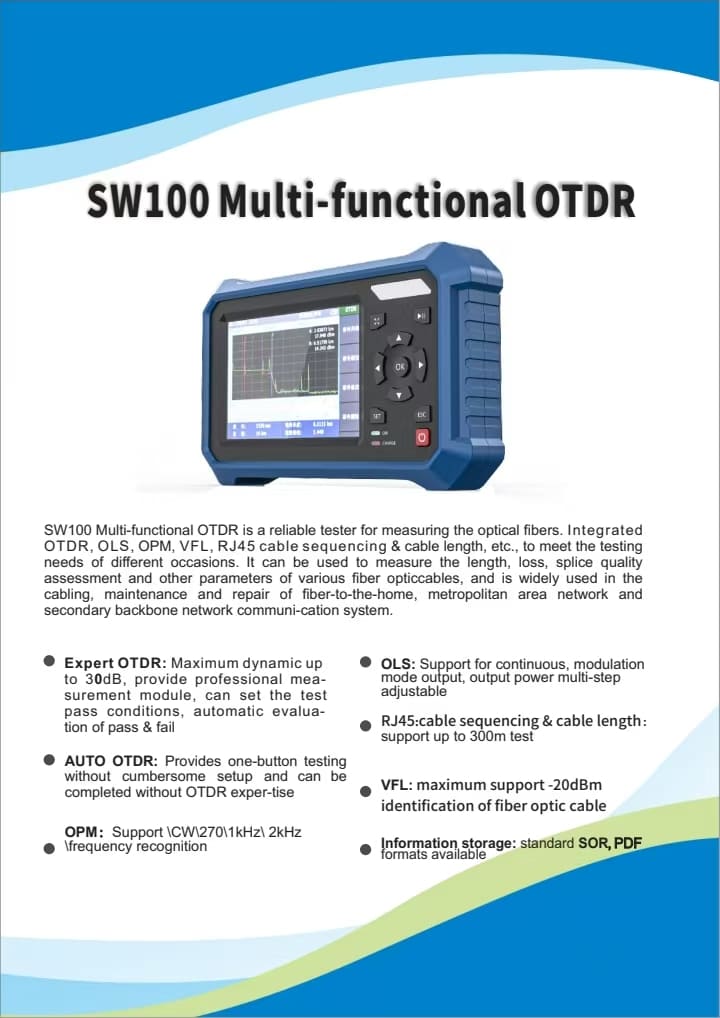

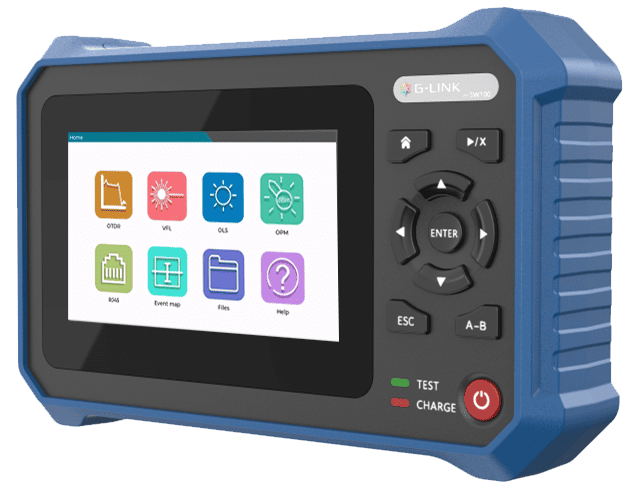

Multi-functional OTDR SW100
SW100 Multi-functional OTDR is a reliable tester for measuring the optical fibers. Integrated
OTDR, OLS, OPM, VFL, RJ45 cable sequencing & cable length, etc., to meet the testing
needs of different occasions. It can be used to measure the length, loss, splice quality
assessment and other parameters of various fiber opticcables, and is widely used in the
cabling, maintenance and repair of fiber-to-the-home, metropolitan area network and
secondary backbone network communi-cation system.
Product Details
Expert OTDR: Maximum dynamic up to 30dB, provide professional measurement module, can set the test pass conditions, automatic evaluation of pass & fail
AUTO OTDR: Provides one-button testing without cumbersome setup and can be completed without OTDR exper-tise
OPM：Support \CW\270\1kHz\ 2kHz\frequency recognition
OLS: Support for continuous, modulation mode output, output power multi-step adjustable
RJ45:cable sequencing & cable length：support up to 300m test
VFL: maximum support -20dBm identification of fiber optic cable
Information storage: standard SOR, PDF formats available
